Manages power states, powers JetKVM via USB-C or pin header, includes PCIe brackets, and supports simultaneous KVM and front panel button connections with dual headers.

ATX Power Extension

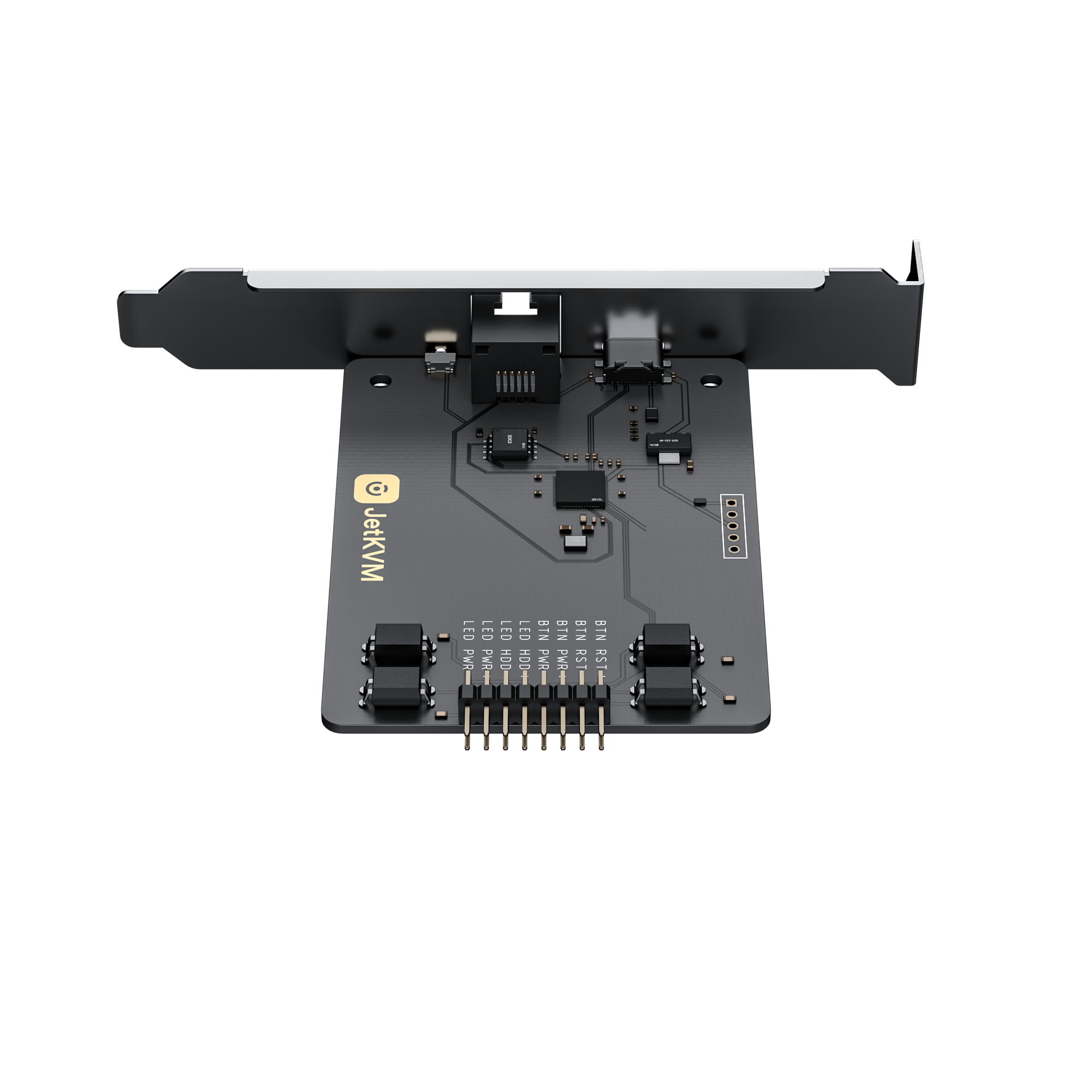

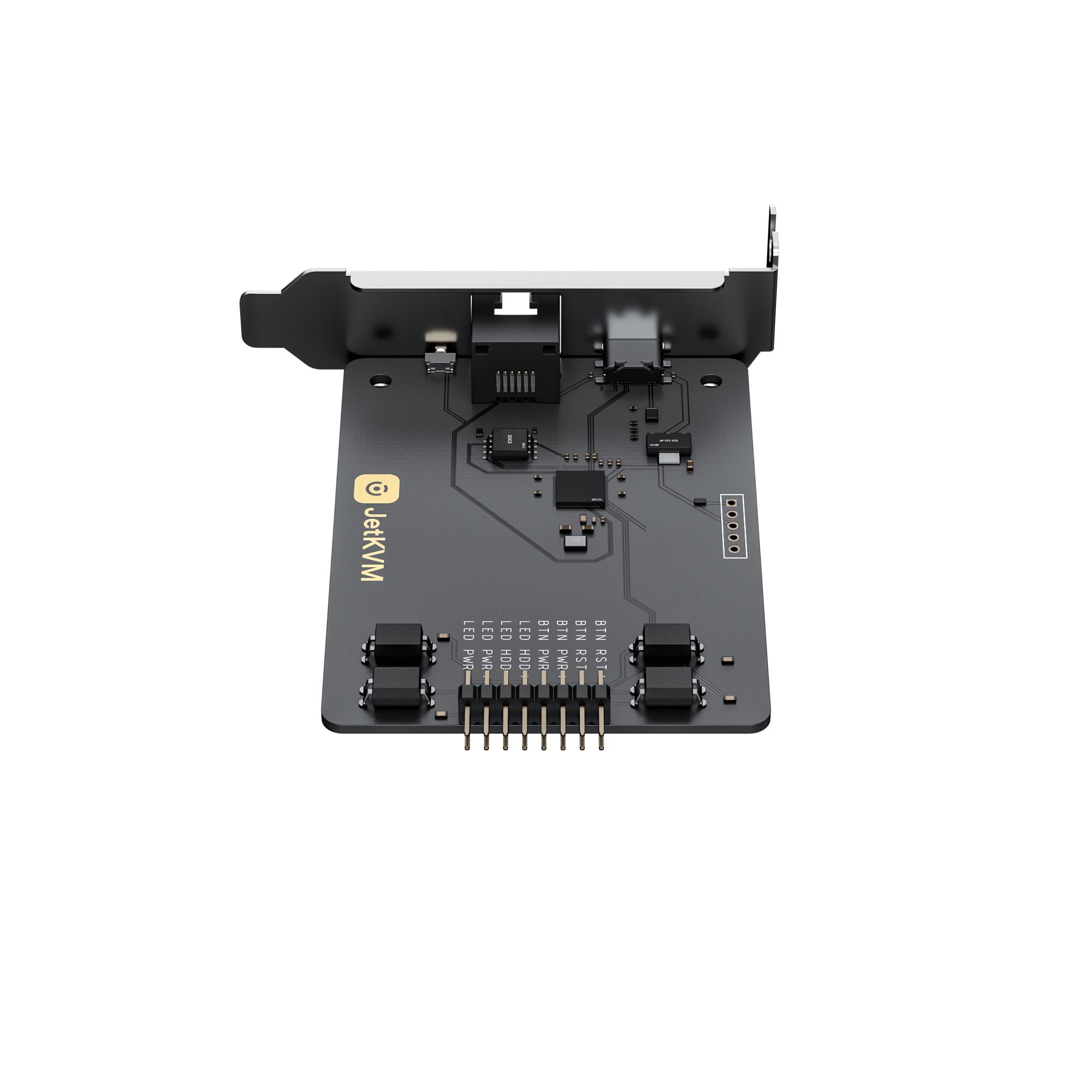

A control board that manages computer power states through the JetKVM's RJ-12 extension port. Connect to your motherboard's front panel headers to gain remote power control over your PC.

Each pin features dual headers: one set for KVM control and another for the original front panel buttons -- meaning you don't have to choose between them. Both can be connected simultaneously.

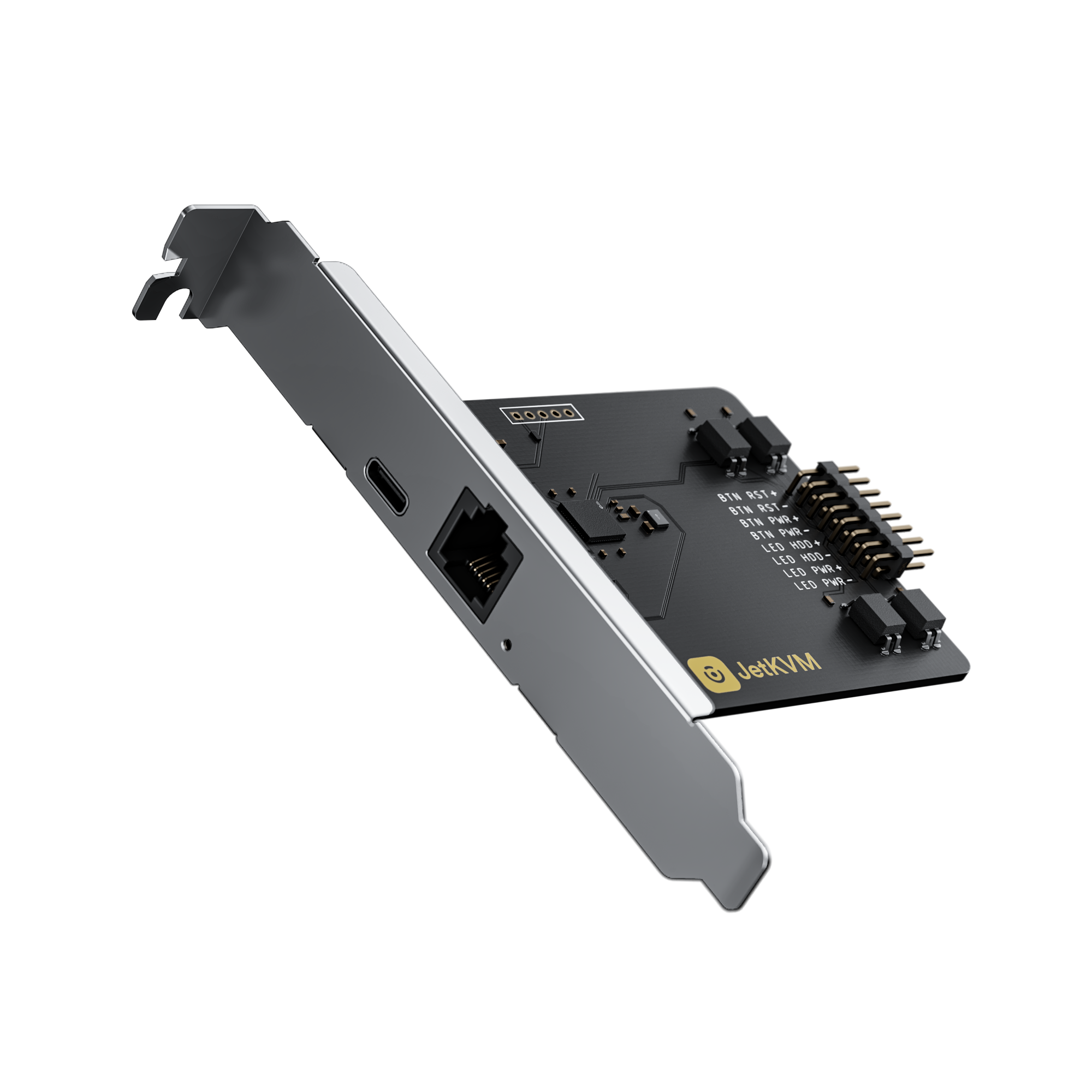

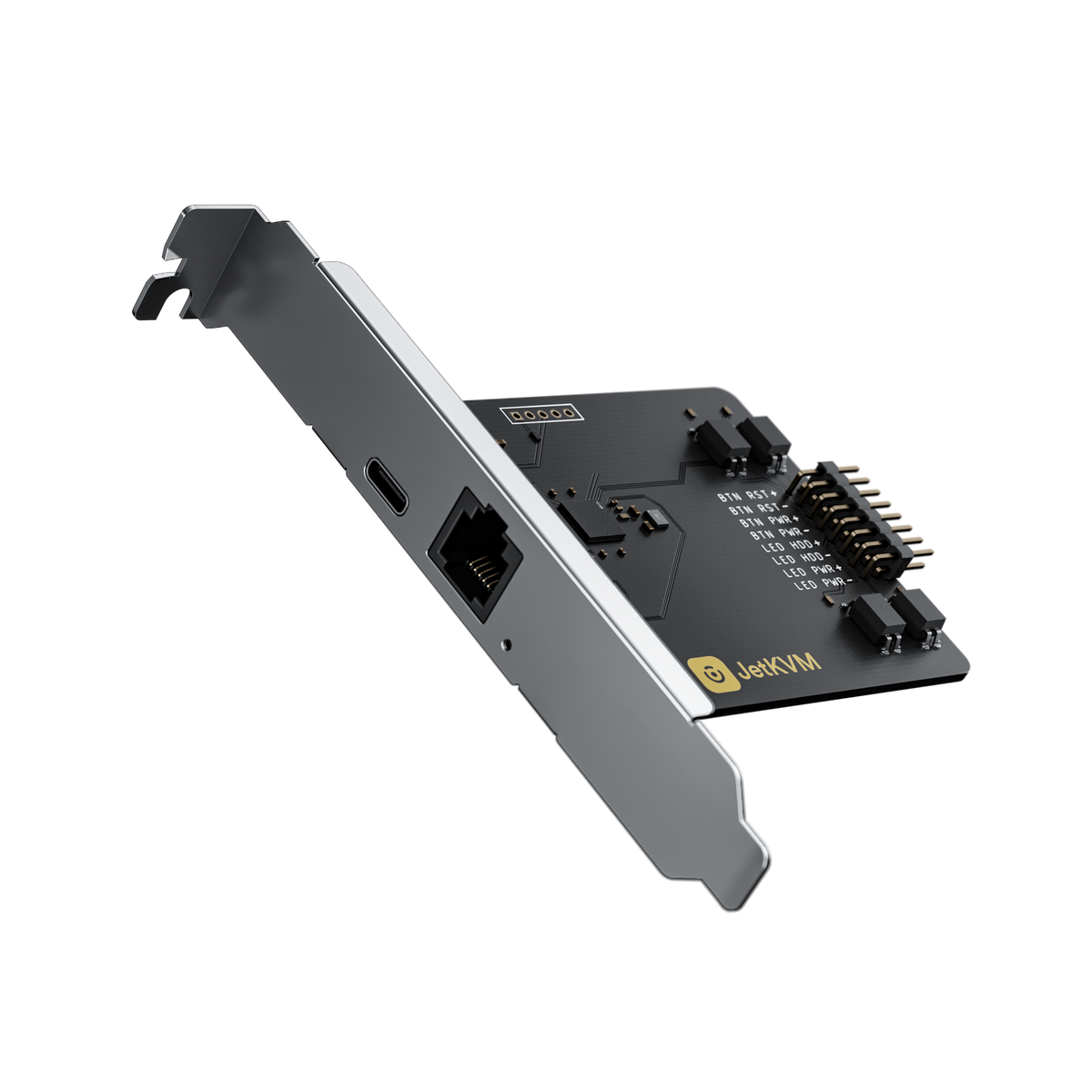

Comes with a PCIe slot cover bracket for clean cable routing through your PC case without requiring an actual PCIe slot.

Pass-through Power

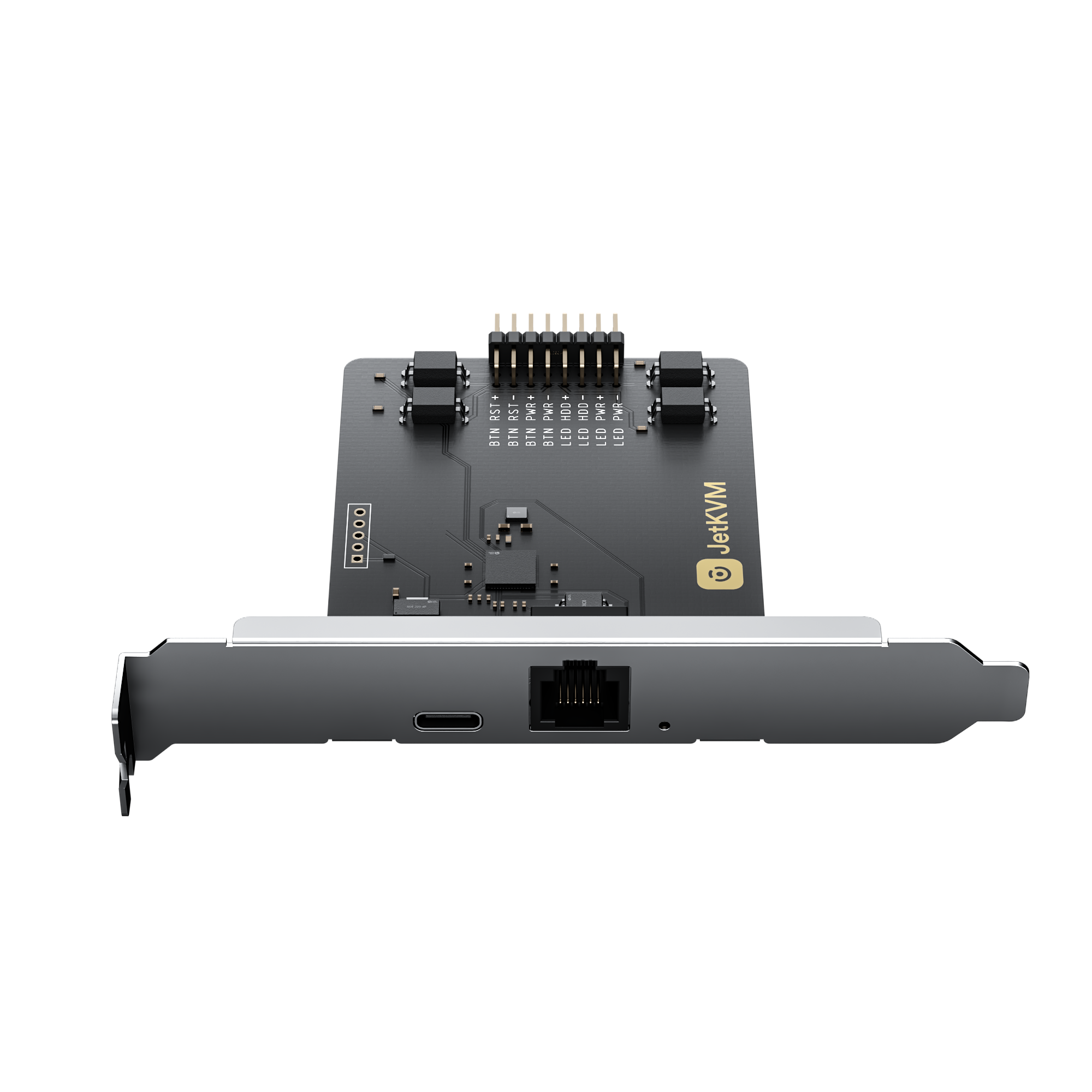

The built-in USB-C port provides 5V power directly through the RJ-12 cable, powering your JetKVM without the need for a separate USB connection.

This eliminates the need for constant USB power from the host computer or a USB splitter, simplifying your setup with a single-cable solution for both power and control.

What's in the Box

• ATX Power Control Board
• RJ12 cable
• PCIe slot cover bracket

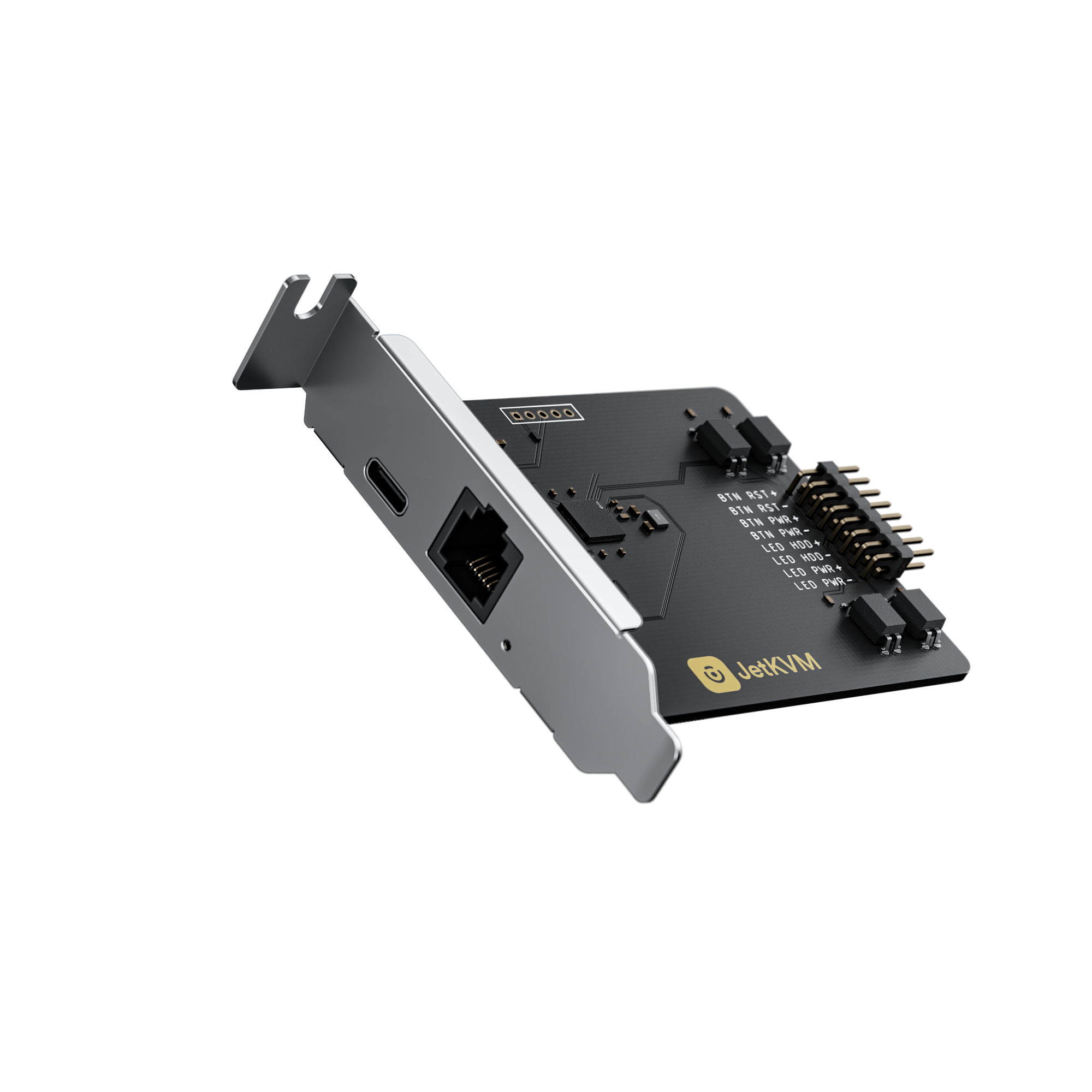

• Small PCIe slot cover bracket
• Pin headers


More

• User Manual: https://jetkvm.com/docs/peripheral-devices/extension-port
