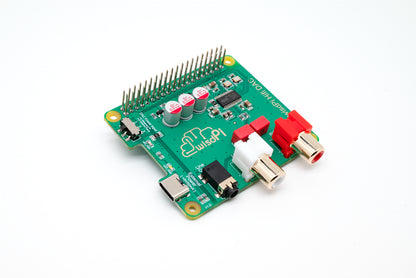

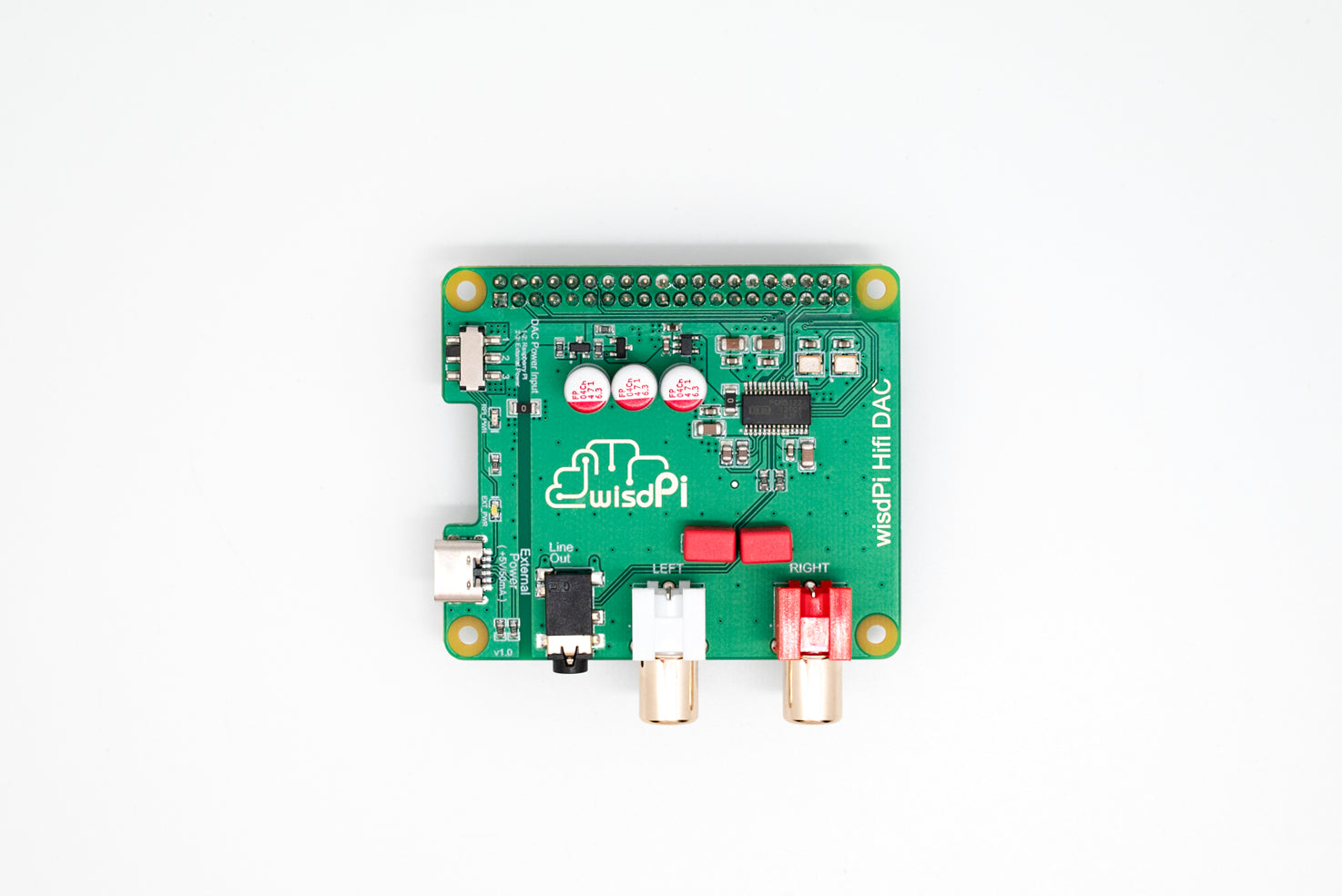

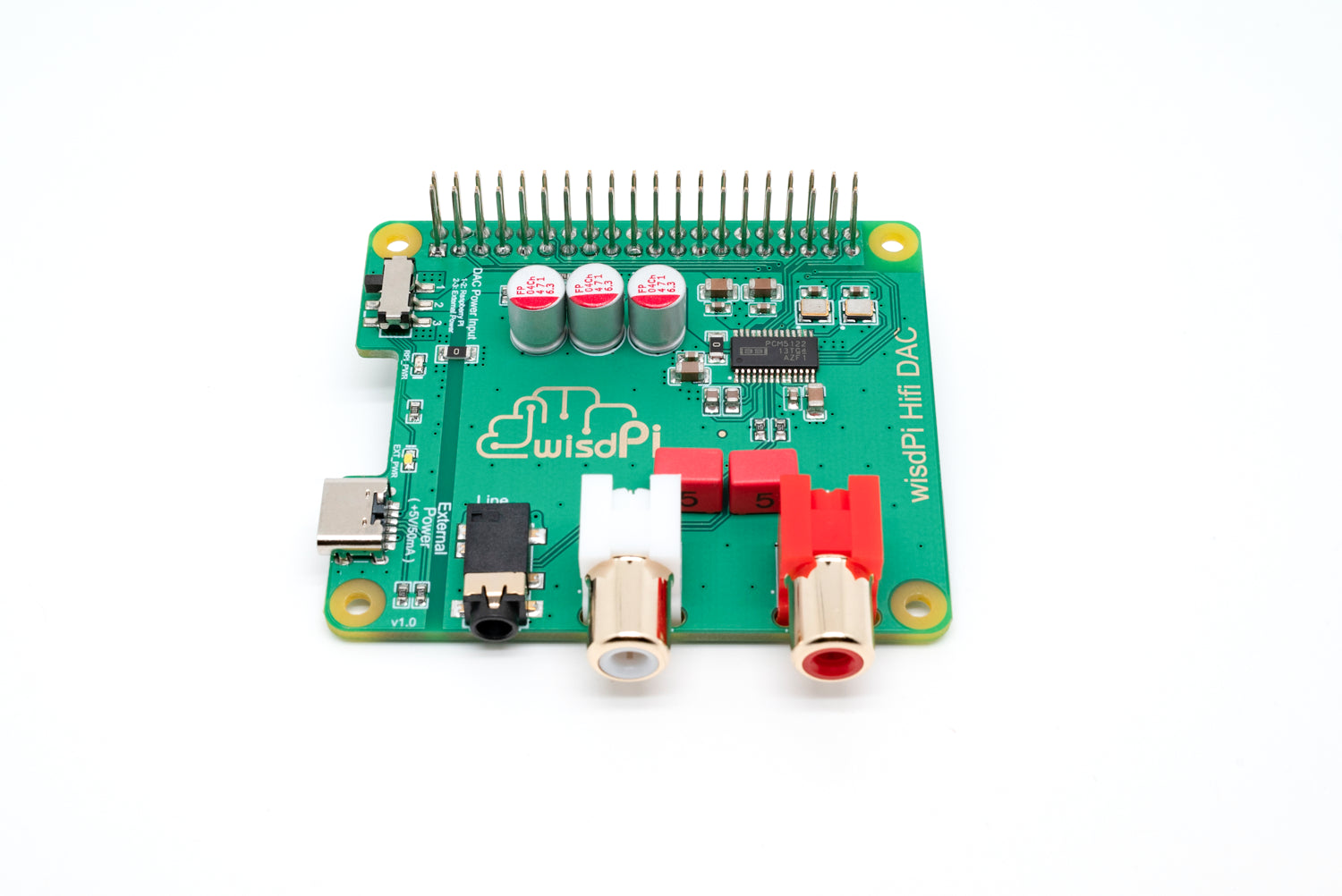

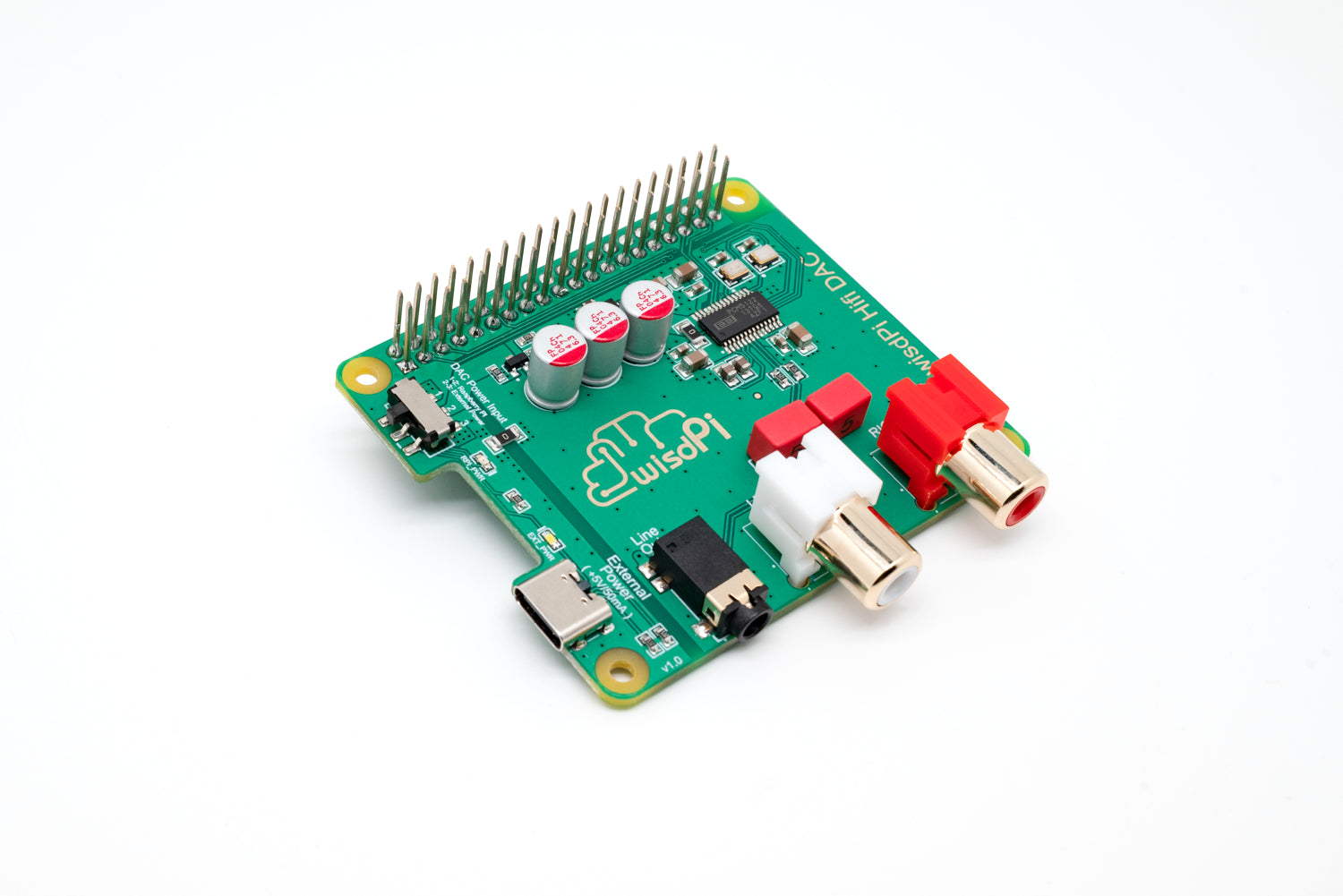

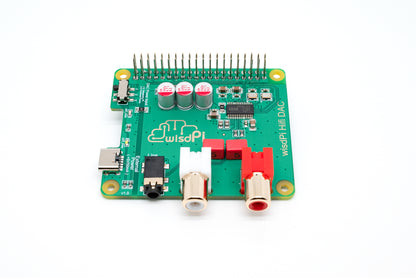

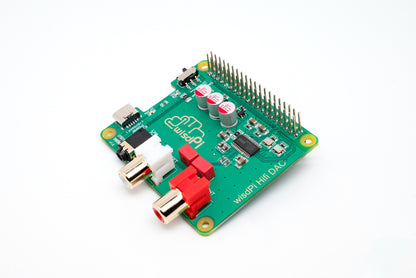

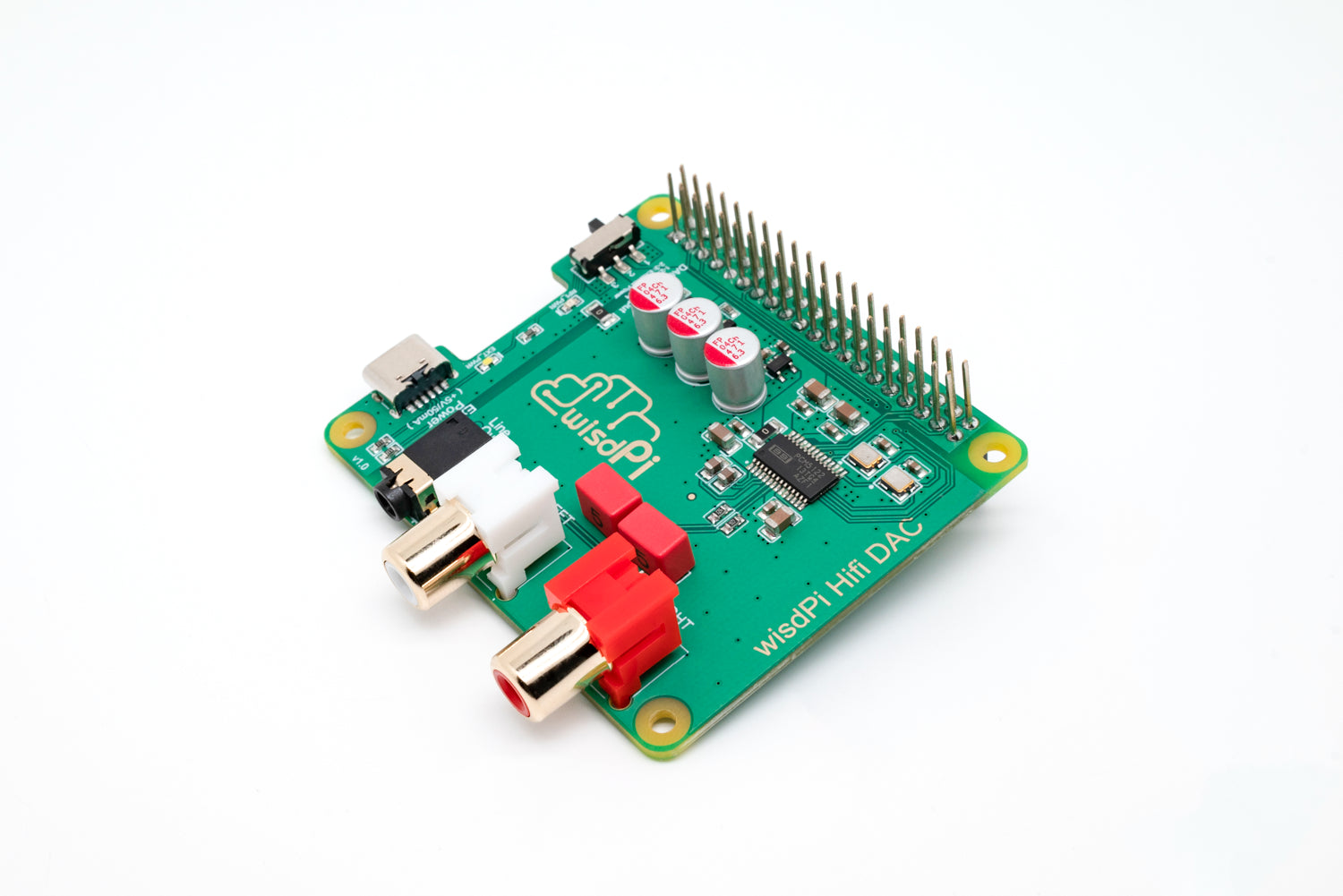

wisdPi HiFi DAC | Active Power Noise Reduction and External Power Raspberry Pi HAT

Introducing our new HiFi DAC product, specifically designed for use with Raspberry Pi.

With an external power interface and active power noise reduction, this product is a step above the competition.

Our HiFi DAC delivers exceptional sound quality, allowing you to fully enjoy your audio experience.

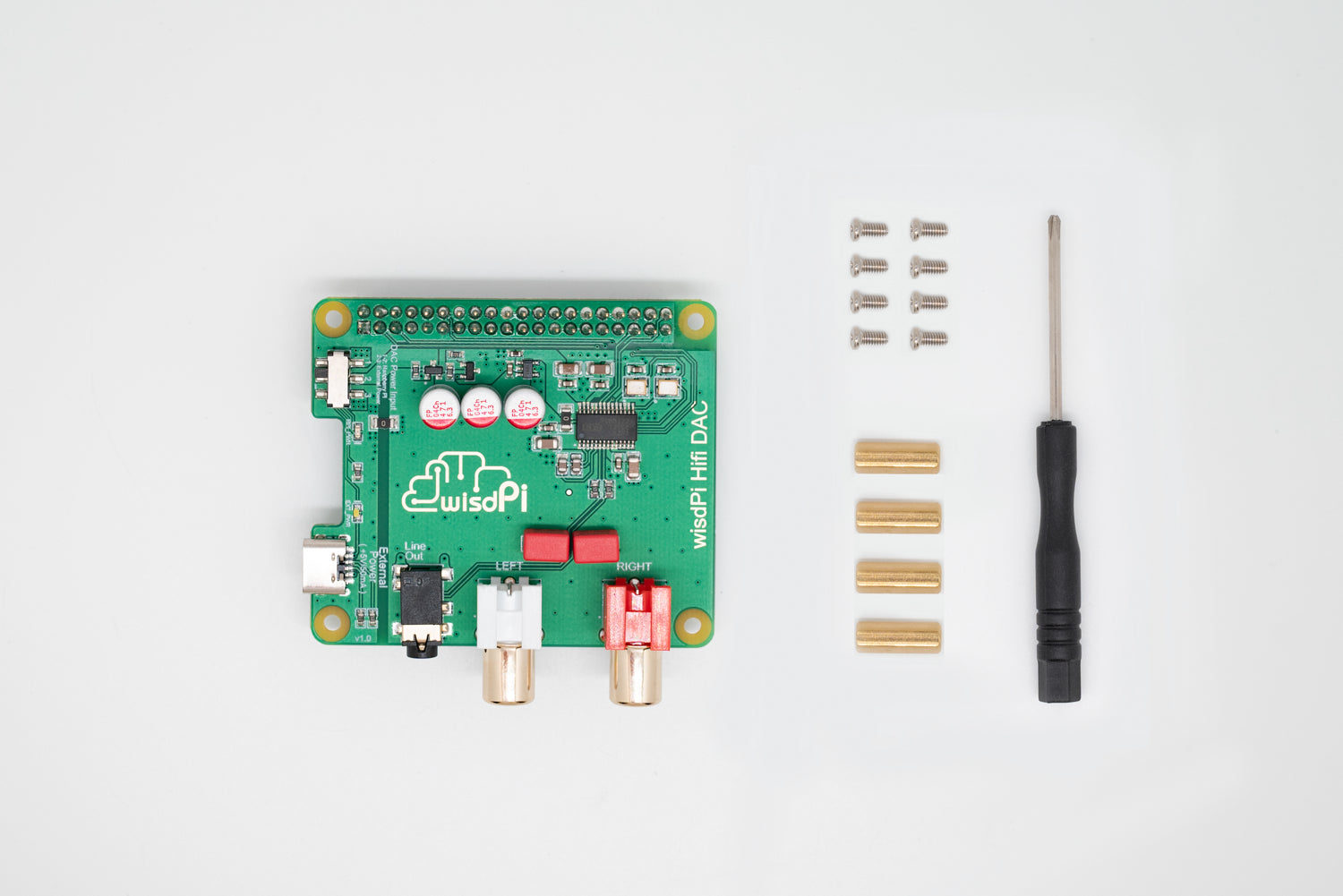

The product is easy to install and use, and is compatible with a variety of Raspberry Pi models.

Whether you're an audiophile or just looking for an upgrade to your audio setup, our HiFi DAC is the perfect choice.

Features:

• External +5V type-C Power input
• Active power noise reduction
• Stereo audio DAC TI PCM5122, sample rates up to 384-KHz/32-Bit.
• Compatible with Raspberry Pi 4, Zero, Zero W, 3B, 3B+ with the 40-pin connector
• Gold plated RCA jacks and gold plated 3.5mm high-end headphone jack
• Support all Raspberry Pi music playback system, like LibreElec, OSMC, Max2Play, RuneAudio, Volumio, Moode, PiCorePlayer, PiMusicBox, OpenELEC, Debian, Ubuntu etc. Support DSD over PCM(DOP) mode

Electrical Characteristics:

• +5V power from Raspberry Pi 40-Pin header or external type-c usb
• DAC SNR 112dB, THD -93dB
• Full Scale Output of DAC is 2.1Vrms.
• Sampling Frequency ranges from 8kHz to 384kHz.
• Ultra-low noise voltage regulators for optimal audio performance.
